XR2203

26V Step-up DC/DC Converter

XR2203 Features

* z 2.3V to 6V input voltage Rangel z Efficiency up to 96% z 26V Boost converter with 2.8A switch current z 1.2Mhz fixed Switching Frequency z Integrated soft-start z Thermal Shutdown z Under voltage Lockout z SOT23-5 Package APPLICATIONS

* Handheld Devices

* GPS Receiver

* Dig

XR2203 General Description

The XR2203 is a high frequency, high efficiency DC to DC converter with an integrated 2.8A, 0.1Ω power switch capable of providing an output voltage up to 26V. The fixed 1.2MHz allows the use of small external inductions and capacitors and provides fast transient response. It integrates Soft start, .

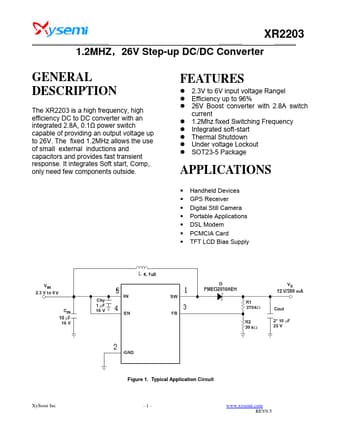

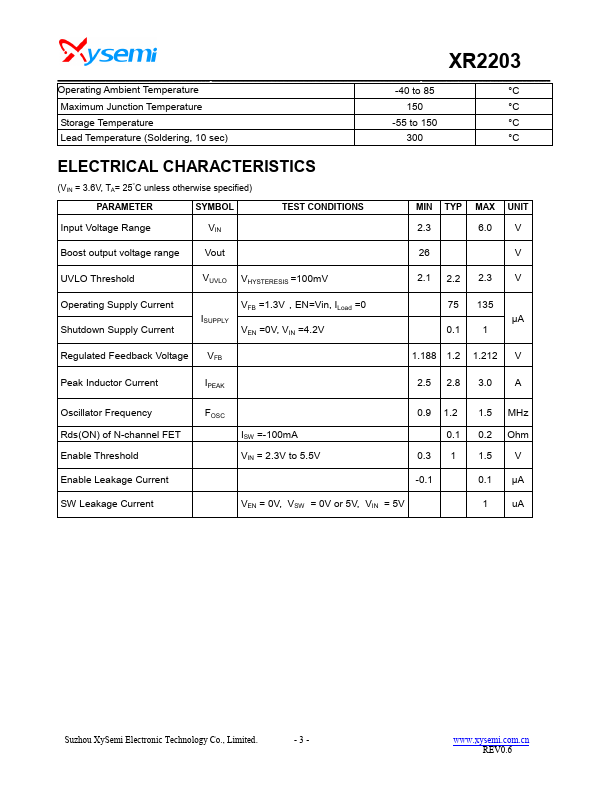

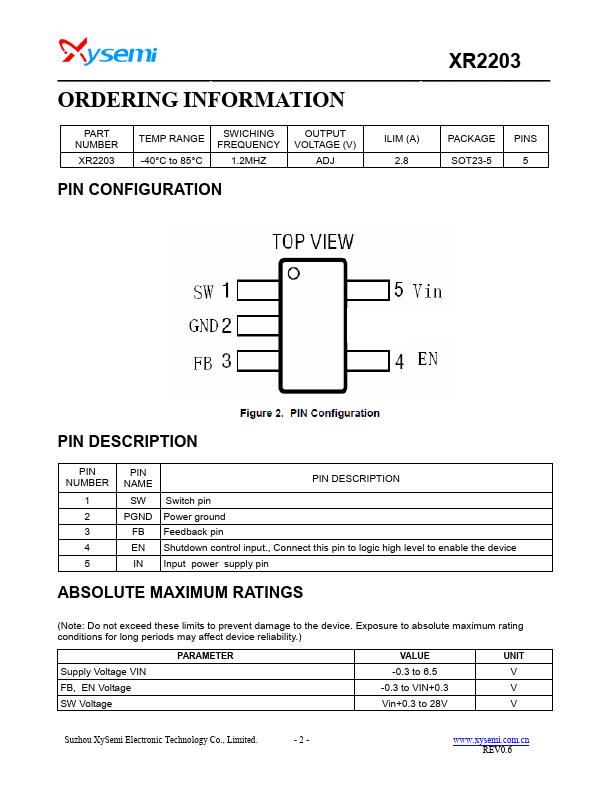

XR2203 Datasheet (262.95 KB)

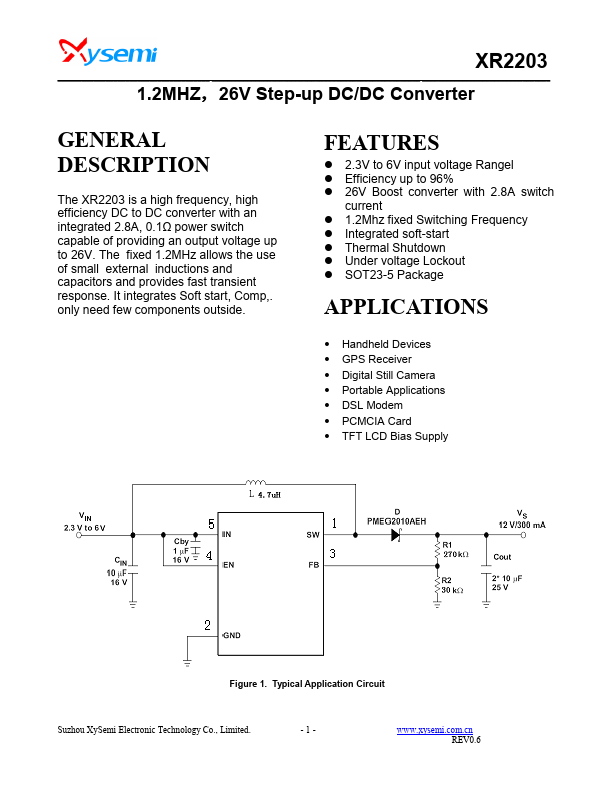

XR2203 Datasheet Preview — Preview of XR2203 PDF

Datasheet Details

Part number:

XR2203

Manufacturer:

XySemi

File Size:

262.95 KB

Description:

26v step-up dc/dc converter.
