XR2203E 14V Step-up DC/DC Converter

XR2203E Description

XR2203E _____________________________ _________ ____________ ___ ________ 1.2MHZ，14V Step-up DC/DC Converter GENERAL .
The XR2203E is a high frequency, high efficiency DC to DC converter with an integrated 4A, 0.

XR2203E Features

* 2.3V to 6V input voltage Rangel
* Efficiency up to 96%
* 14V Boost converter with 4A switch current
* 1.2Mhz fixed Switching Frequency
* Integrated soft-start
* Thermal Shutdown
* Under voltage Lockout
* ESD 8KV Pass( HBM )

XR2203E Applications

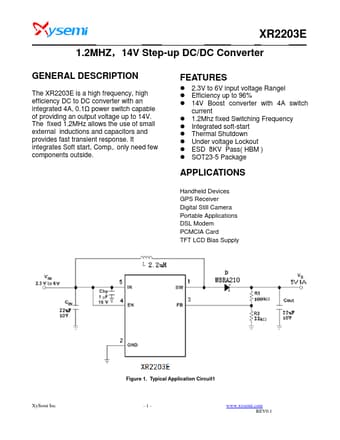

* Handheld Devices GPS Receiver Digital Still Camera Portable Applications DSL Modem PCMCIA Card TFT LCD Bias Supply XySemi Inc Figure 1. Typical Application Circuit1 - 1 - www. xysemi. com REV0.1 XR2203E ________________________________
