XR2201

26V Step-up DC/DC Converter

XR2201 Features

* 2.3V to 6V input voltage Rangel

* 26V Boost converter with 2.8A switch current

* 1.2Mhz fixed Switching Frequency

* Integrated soft-start

* Thermal Shutdown

* Undervoltage Lockout

* ESD 8KV Pass( HBM )

* 8-Pin Msop Package APPLICATION

XR2201 General Description

The XR2201 is a high frequency, high efficiency DC to DC converter with an integrated 2.0A, 0.1Ω power switch capable of providing an output voltage up to 26V. The fixed 1.2Mhz allows the use of small external inductions and capactiors and provides fast transient response. It integrates Soft start, .

XR2201 Datasheet (252.40 KB)

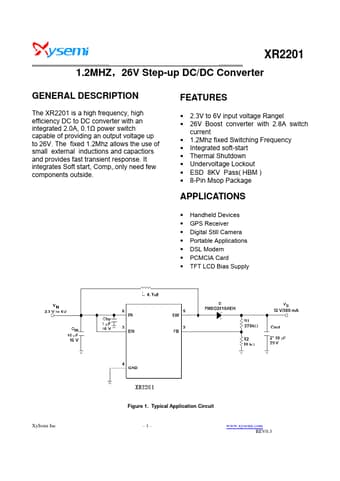

XR2201 Datasheet Preview — Preview of XR2201 PDF

Datasheet Details

Part number:

XR2201

Manufacturer:

XySemi

File Size:

252.40 KB

Description:

26v step-up dc/dc converter.
