EM8569A

PWM Converter

EM8569A Features

* more protection like Over Load Protection (OLP) and Over Voltage Protection (OVP) to prevent circuit damage occurred under abnormal conditions. The EM8569A also has line under-voltage protection (Brown-out Protection). Features 700V High Voltage Start up Circuit Current Mode Control Soft Start Func

EM8569A General Description

EM8569A is a high performance, low cost, HV Start-up, current mode PWM controller with green mode power saving. The EM8569A integrates functions of Soft Start (SS), Under Voltage Lockout (UVLO), Leading Edge Blanking (LEB), internal Over Temperature Protection (OTP), and internal slope compensation..

EM8569A Datasheet (312.81 KB)

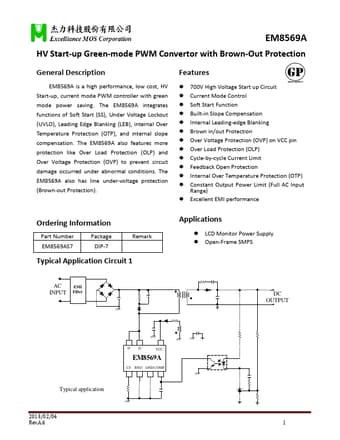

Preview of EM8569A PDF

Datasheet Details

Part number:

EM8569A

Manufacturer:

Excelliance MOS

File Size:

312.81 KB

Description:

Pwm converter.
