EM8569C HV Start-up Green-mode PWM Convertor

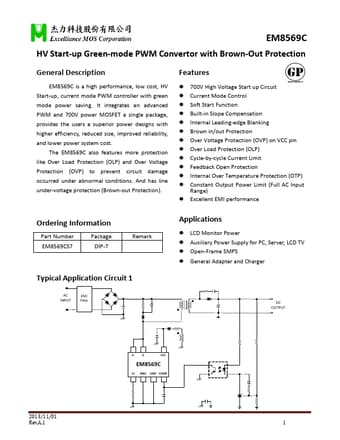

📥 Download Datasheet  Datasheet Preview Page 1

Description

EM8569C HV Start-up Green-mode PWM Convertor with Brown-Out Protection General .
EM8569C is a high performance, low cost, HV Start-up, current mode PWM controller with green mode power saving.

📥 Download Datasheet

Preview of EM8569C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
EM8569C
Manufacturer
Excelliance MOS
File Size
292.51 KB
Datasheet
EM8569C-ExcellianceMOS.pdf
Description
HV Start-up Green-mode PWM Convertor

Features

* more protection like Over Load Protection (OLP) and Over Voltage Protection (OVP) to prevent circuit damage occurred under abnormal conditions. And has line under-voltage protection (Brown-out Protection). Features 700V High Voltage Start up Circuit Current Mode Control Soft Start Function Built-in

Applications

* LCD Monitor Power Auxiliary Power Supply for PC, Server, LCD TV Open-Frame SMPS General Adapter and Charger AC INPUT EMI Filter DC OUTPUT D D VCC EM8569C CS BNO GND COMP 2013/11/01 Rev. A.1 1 Typical Application Circuit 2 AC INPUT EMI Filter EM8569C DC OUTPUT Brown-out application D
