EMB20P03V Datasheet - Excelliance MOS

EMB20P03V MOSFET

P‐Channel Logic Level Enhancement Mode Field Effect Transistor Product Summary: D BVDSS ‐30V RDSON (MAX.) 20mΩ ID ‐18A G UIS, Rg 100% Tested S Pb‐Free Lead Plating & Halogen Free ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Gate‐Source Voltage Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy Repetitive Avalanche Energy2 L = 0.1mH, ID=‐10A, RG=25Ω L = 0.05mH Power Dissipa.

EMB20P03V Datasheet (192.46 KB)

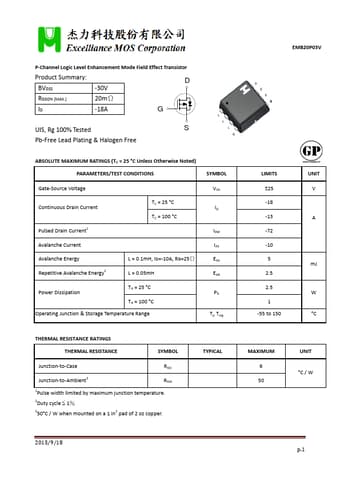

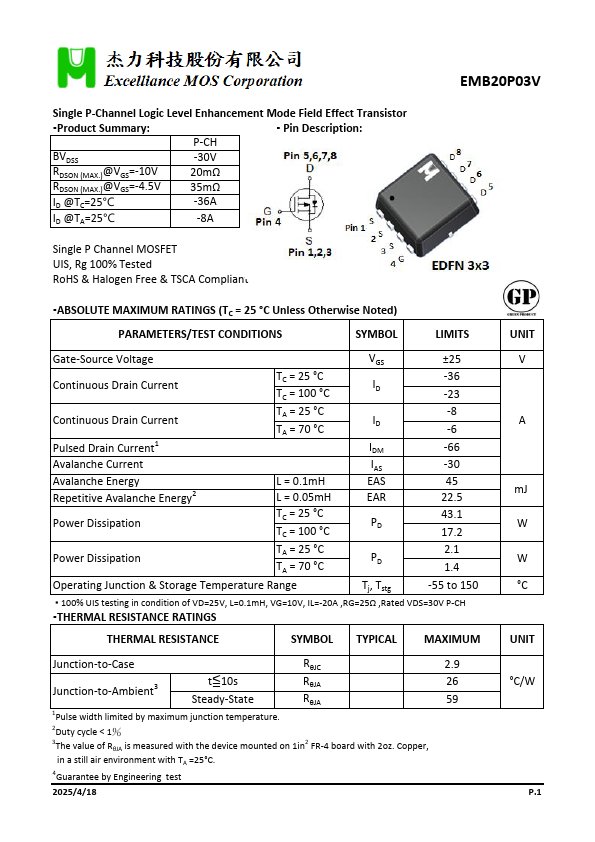

Preview of EMB20P03V PDF

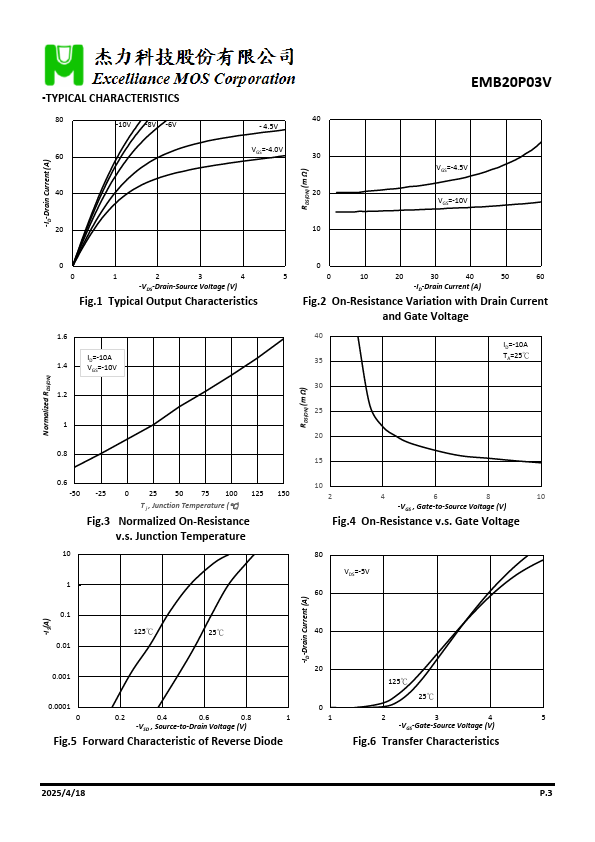

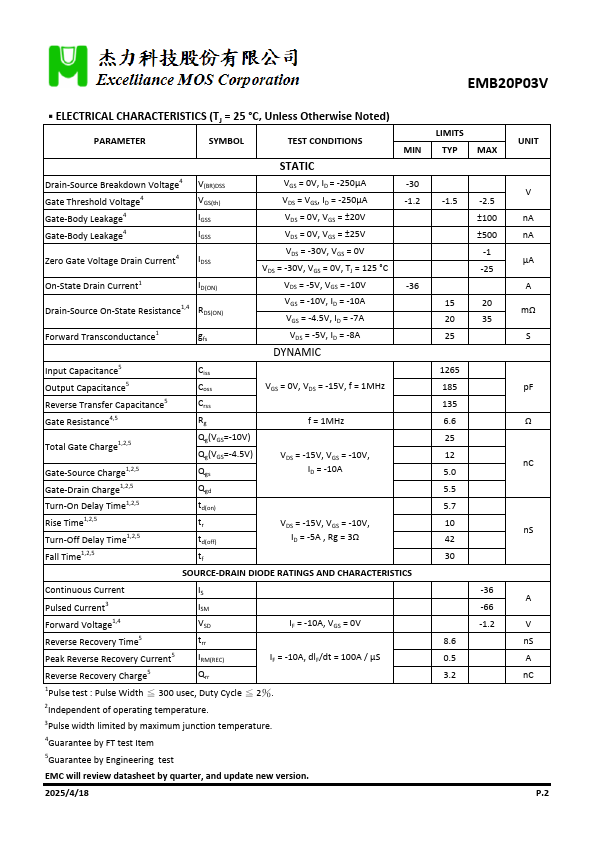

EMB20P03V Datasheet Preview Page 2 EMB20P03V Datasheet Preview Page 3

Datasheet Details

Part number:

EMB20P03V

Manufacturer:

Excelliance MOS

File Size:

192.46 KB

Description:

Mosfet.
