EMB11 - Dual Digital Transistors

EMB11 Description

EMB11 / UMB11N / IMB11A General purpose (dual digital transistors) Datasheet Parameter VCC IC(MAX.) R1 R2 DTr1 and DTr2 -50V -100mA 10kΩ 10kΩ lFea.

EMB11 Features

* 1)Two DTA114E chips in a EMT or UMT or 　 SMT package. 2)Mounting possible with EMT3 or UMT3 or 　 SMT3 automatic mounting machines. 3)Transistor elements are independent, 　 eliminating interference. 4)Mounting cost and area can be cut in half. lOutline SOT-563 SOT-363 　 　 EMB11 (EMT6) UMB11N (U

📥 Download Datasheet

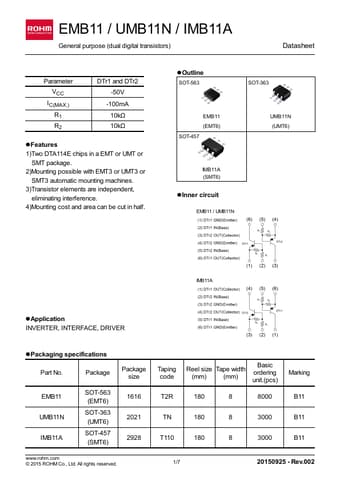

Preview of EMB11 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EMB11
Manufacturer
ROHM ↗
File Size
1.69 MB
Datasheet
EMB11_Rohm.pdf
Description
Dual Digital Transistors
