EMB10 - PNP Digital Transistors

EMB10 Description

EMB10 / UMB10N / IMB10A PNP -100mA -50V Complex Digital Transistors (Bias Resistor Built-in Transistors) Datasheet Parameter VCC IC(MAX.) R1 R2 Tr1 .

EMB10 Features

* 1) Built-In Biasing Resistors. 2) Two DTA123J chips in one package. 3) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit). 4) The bias resistors consist of thin-film resistors with complete isolation to allow negati

📥 Download Datasheet

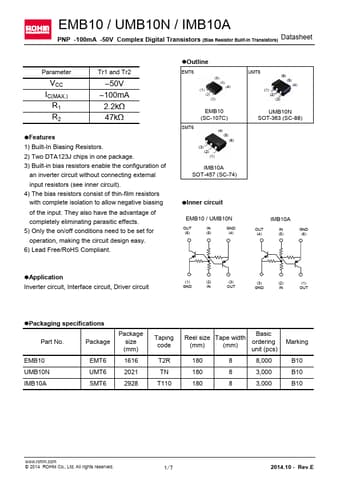

Preview of EMB10 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EMB10
Manufacturer
ROHM ↗
File Size
471.16 KB
Datasheet
EMB10_Rohm.pdf
Description
PNP Digital Transistors
