EMP31N03HQ - Single N-Channel Logic Level Enhancement Mode Field Effect Transistor

📥 Download Datasheet

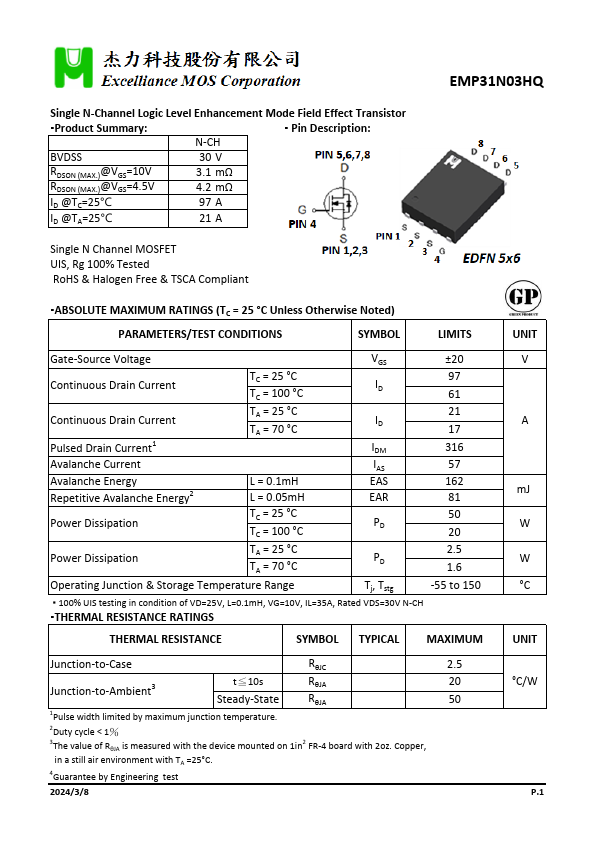

Preview of EMP31N03HQ PDF

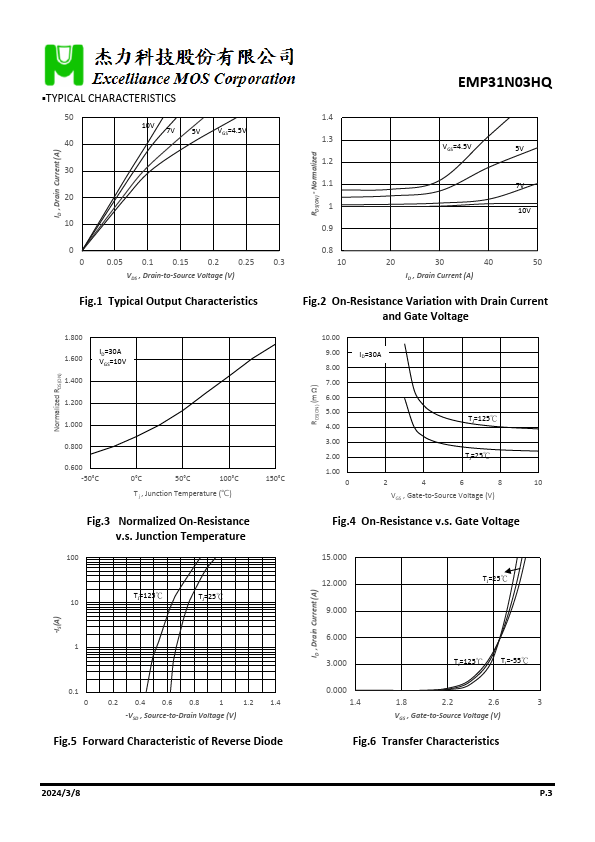

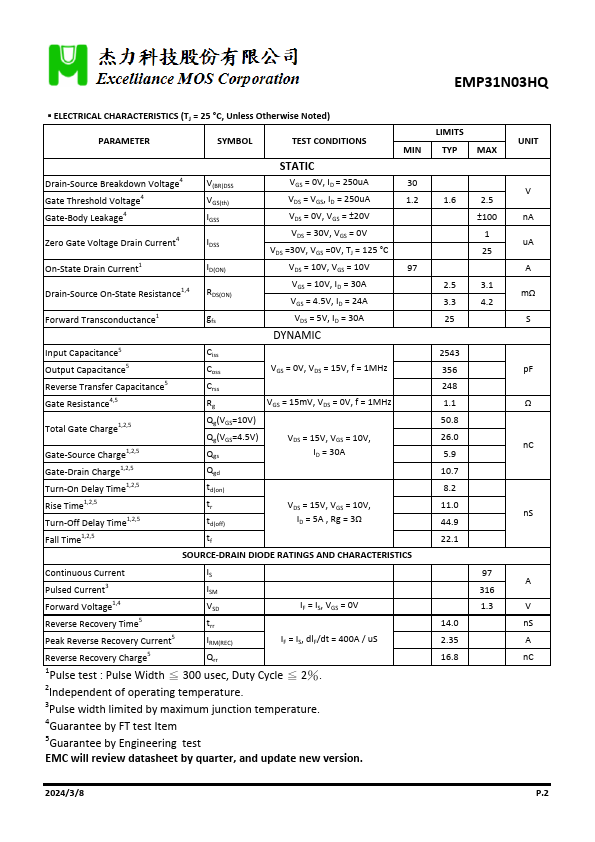

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number EMP31N03HQ
Manufacturer Excelliance MOS
File Size 337.62 KB
Description Single N-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet download datasheet EMP31N03HQ-ExcellianceMOS.pdf

EMP31N03HQ Product details

Description

N-CH BVDSS 30 V RDSON (MAX.)@VGS=10V RDSON (MAX.)@VGS=4.5V 3.1 mΩ 4.2 mΩ ID @TC=25℃ 97 A ID @TA=25℃ 21 A Single N Channel MOSFET UIS, Rg 100% Tested RoHS & Halogen Free & TSCA Compliant ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±20 Continuous Drain Current TC = 25 °C TC = 100 °C ID 97 61 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID 21 17 IDM 316 Avalanc
