EMP19K03HPCS Datasheet - Excelliance MOS

EMP19K03HPCS N-Channel Logic Level Enhancement Mode Field Effect Transistor

N-Channel Logic Level Enhancement Mode Field Effect Transistor Product Summary: N-CH-Q1 N-CH-Q2 BVDSS 30V 30V RDSON (MAX.) 5.7mΩ 2.2mΩ ID 48A 90A N Channel MOSFET UIS, Rg 100% Tested Pb-Free Lead Plating & Halogen Free ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL EMP19K03HPCS LIMITS UNIT Q1 Q2 Gate-Source Voltage VGS ±20 ±12 V Continuous Drain Current TC = 25 °C ID TA= 25 °C(t≦10s) TA= 25 °C(Steady-State) 48 90 18 2.

EMP19K03HPCS-ExcellianceMOS.pdf

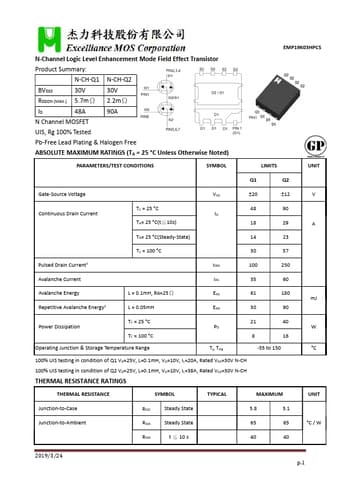

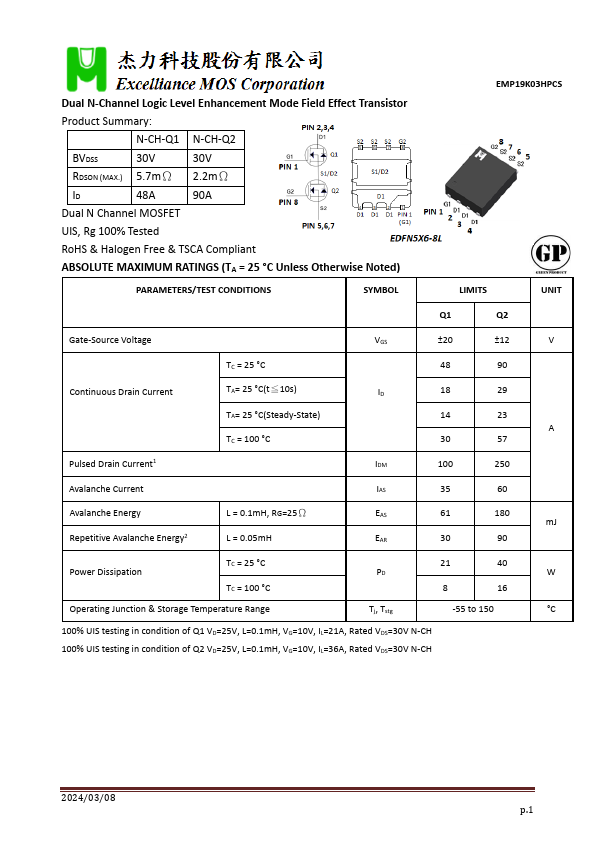

Preview of EMP19K03HPCS PDF

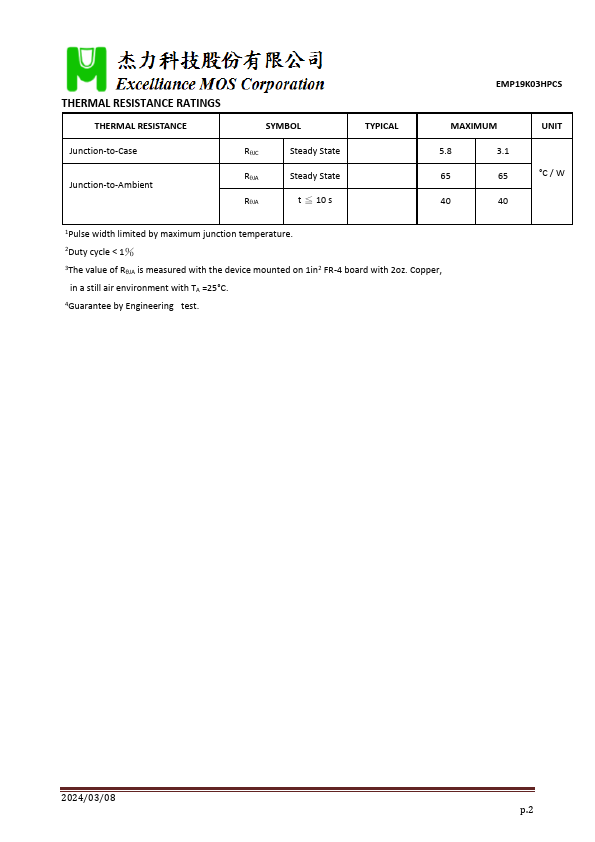

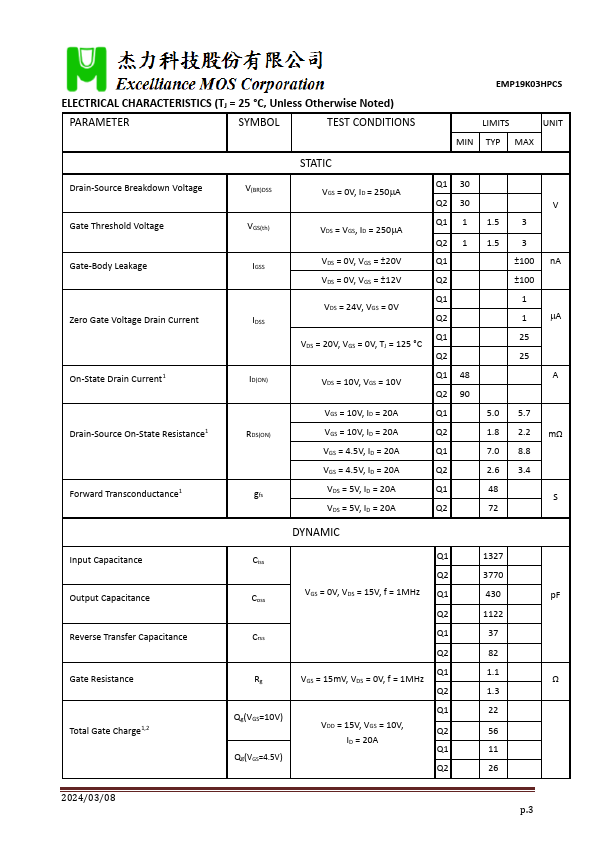

EMP19K03HPCS Datasheet Preview Page 2 EMP19K03HPCS Datasheet Preview Page 3

Datasheet Details

Part number:

EMP19K03HPCS

Manufacturer:

Excelliance MOS

File Size:

0.99 MB

Description:

N-channel logic level enhancement mode field effect transistor.
