2N5769 NPN Switching Transistor

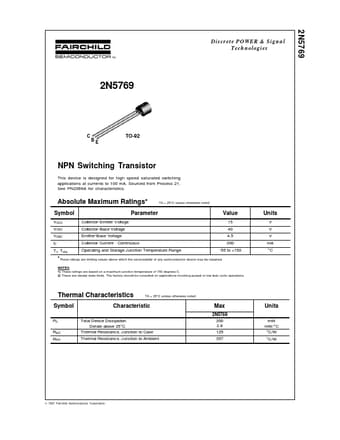

2N5769 Discrete POWER & Signal Technologies 2N5769 C BE TO-92 NPN Switching Transistor This device is designed for high speed saturated switching applications at currents to 100 mA. Sourced from Process 21. See PN2369A for characteristics. Absolute Maximum Ratings Symbol VCEO VCBO VEBO IC TJ, Tstg Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous TA = 25°C unless otherwise noted Parameter Value 15 40 4.5 200 -55 to +150 Units V V.

2N5769_FairchildSemiconductor.pdf

Preview of 2N5769 PDF
2N5769 Datasheet Preview Page 2

Datasheet Details

Part number:

2N5769

Manufacturer:

Fairchild Semiconductor

File Size:

26.23 KB

Description:

Npn switching transistor.
