2N5772 NPN Switching Transistor

📥 Download Datasheet Datasheet Preview Page 1

Description

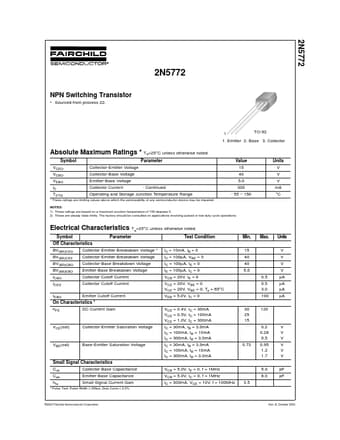

2N5772 2N5772 NPN Switching Transistor * Sourced from process 22.1 TO-92 1.Emitter 2.Base 3.Collector Absolute Maximum Ratings * .

📥 Download Datasheet

Preview of 2N5772 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2N5772
Manufacturer
Fairchild Semiconductor
File Size
28.94 KB
Datasheet
2N5772_FairchildSemiconductor.pdf
Description
NPN Switching Transistor

Applications

* involving pulsed or low duty cycle operations Electrical Characteristics Ta=25°C unless otherwise noted Symbol Off Characteristics BV(BR)CEO BV(BR)CES BV(BR)CBO BV(BR)EBO ICBO ICES IEBO hFE Parameter Test Condition IC = 10mA, IB = 0 IC = 100µA, VBE = 0 IC = 100µA, IE = 0 IE = 100µA, IC = 0 VCB = 20
