BCW61D Transistor

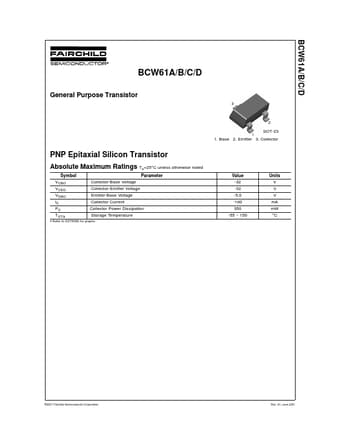

BCW61A/B/C/D BCW61A/B/C/D General Purpose Transistor 3 2 SOT-23 1 1. Base 2. Emitter 3. Collector PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol Parameter VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current PC Collector Power Dissipation TSTG Storage Temperature Refer to KST5086 for graphs Value -32 -32 -5.0 -100 350 -55 ~ 150 Units V V V mA mW °C ©2001 Fairchil.

BCW61A-FairchildSemiconductor.pdf

This datasheet PDF includes multiple part numbers: BCW61D, BCW61A. Please refer to the document for exact specifications by model.
BCW61D Datasheet Preview Page 2 BCW61D Datasheet Preview Page 3

Datasheet Details

Part number:

BCW61D, BCW61A

Manufacturer:

Fairchild Semiconductor

File Size:

70.90 KB

Description:

Transistor.

Note:

This datasheet PDF includes multiple part numbers: BCW61D, BCW61A.
Please refer to the document for exact specifications by model.
