CNY17F-4

The CNY17F-4 is 6-PIN DIP OPTOCOUPLERS designed by Fairchild Semiconductor.

Product Overview

Fairchild Semiconductor

Part number	CNY17F-4
Manufacturer	Fairchild Semiconductor
File Size	177.45 KB
Description	6-PIN DIP OPTOCOUPLERS
Datasheet	CNY17F-4_FairchildSemiconductor.pdf

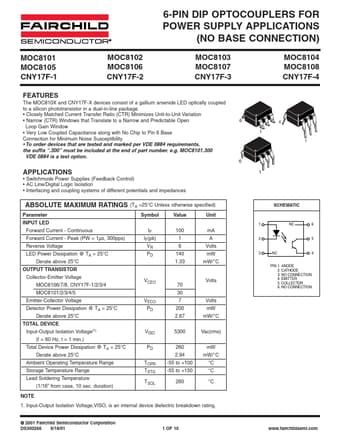

Additional preview pages of the CNY17F-4 datasheet.

The MOC810X and CNY17F-X devices consist of a gallium arsenide LED optically coupled to a silicon phototransistor in a dual-in-line package.
Closely Matched Current Transfer Ratio (CTR) Minimizes Unit-to-Unit Variation.
Narrow (CTR) Windows that Translate to a Narrow and Predictable Open Loop Gain Window.
Very Low Coupled Capacitance along with No Chip to Pin 6 Base Connection for Minimum Noise Susceptibility.
To order devices that are tested and marked per V.
