DM74LS193

Synchronous 4-Bit Binary Counter

DM74LS193 Features

* s Fully independent clear input s Synchronous operation s Cascading circuitry provided internally s Individual preset each flip-flop Ordering Code: Order Number DM74LS193M DM74LS193N Package Number M16A N16E Package Description 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” N

DM74LS193 General Description

The DM74LS193 circuit is a synchronous up/down 4-bit binary counter. Synchronous operation is provided by having all flip-flops clocked simultaneously, so that the outputs change together when so instructed by the steering logic. This mode of operation eliminates the output counting spikes normally .

DM74LS193 Datasheet (74.03 KB)

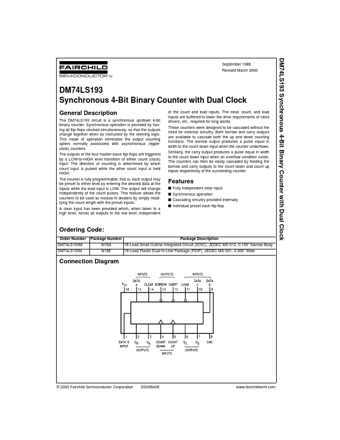

Preview of DM74LS193 PDF

Datasheet Details

Part number:

DM74LS193

Manufacturer:

Fairchild Semiconductor

File Size:

74.03 KB

Description:

Synchronous 4-bit binary counter.
