DM74LS191 Datasheet, Counters, National Semiconductor

DM74LS191 Features

  • Counters Y Counts 8-4-2-1 BCD or binary Y Single down up count control line Y Count enable control input Y Ripple clock output for cascading Y Asynchronously presettable with load control Y Para

PDF File Details

Part number:

DM74LS191

Manufacturer:

National Semiconductor

File Size:

125.07kb

Download:

📄 Datasheet

Description:

Synchronous 4-bit up/down counters. These circuits are synchronous reversible up down counters The LS191 is a 4-bit binary counter and the LS190 is a BCD counter Synchro

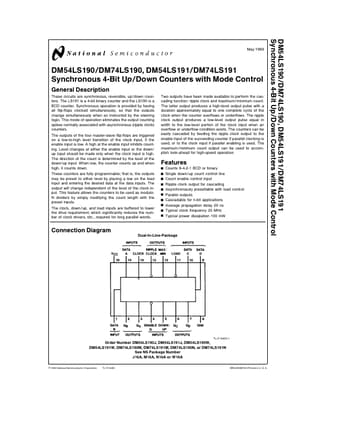

Datasheet Preview: DM74LS191 📥 Download PDF (125.07kb)
Page 2 of DM74LS191 Page 3 of DM74LS191

DM74LS191 Application

  • Applications Y Average propagation delay 20 ns Y Typical clock frequency 25 MHz Y Typical power dissipation 100 mW Connection Diagram Dual-In-Line
