FAN5018B - 6-Bit VID Controller 2-4 Phase VR10.X Controller

FAN5018B Description

www.fairchildsemi.com www.DataSheet4U.com FAN5018B 6-Bit VID Controller 2-4 Phase VR10.X Controller General .
The FAN5018B is a multi-phase DC-DC controller for implementing high-current, low-voltage, CPU core power regulation circuits.

FAN5018B Features

* a high-bandwidth control loop to provide optimal response to load transients. The FAN5018B senses current using lossless techniques: Phase current is measured through each of the output inductors. This current information is summed, averaged and used to set the loadline of the output via programmabl

FAN5018B Applications

* VRM/VRD 9.x and 10.x Computer DC/DC Converter
* High-Current, Low-Voltage DC/DC Rail Block Diagram VIN Φ1 FAN5009 Φ2 FAN5018B Φ3 VIN VOUT Φ4 FAN5009 REV. 1.0.0 Jul/15/05 FAN5018B PRODUCT SPECIFICATION Pin Assignments www. DataSheet4U. com VID4 VID3 VID2 VID1 VID0 VID5/SE

📥 Download Datasheet

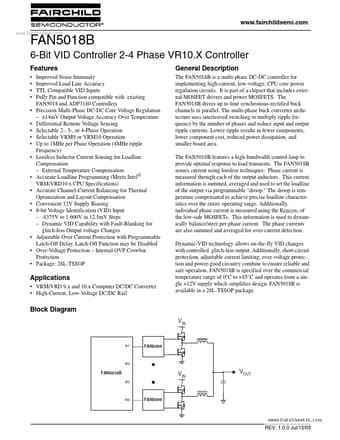

Preview of FAN5018B PDF
