FAN5019 - 6-Bit VID Controller 2-4 Phase VRM10.X Controller

FAN5019 Description

www.fairchildsemi.com FAN5019 6-Bit VID Controller 2-4 Phase VRM10.X Controller .
The FAN5019 is a multi-phase DC-DC controller for implementing high-current, low-voltage, CPU core power regulation circuits.

FAN5019 Features

* Pin and Function Backward Compatible with FAN53168 and FAN53180 Controllers
* Precision Multi-Phase DC-DC Core Voltage Regulation
* ±10mV Output Voltage Accuracy Over Temperature
* Differential Remote Voltage Sensing
* Selectable 2, 3, or 4 Phase Operation

FAN5019 Applications

* Computer DC/DC Converter VRM/VRD10.0 Computer DC/DC Converter VRM/VRD10.X Computer DC/DC Converter VRM/VRD9.X High Current, Low Voltage DC/DC Rail Block Diagram VIN Φ1 FAN5009 Φ2 FAN5019 Φ3 VIN VOUT Φ4 FAN5009 REV. 1.0.7 1/5/04 FAN5019 PRODUCT SPEC

📥 Download Datasheet

Preview of FAN5019 PDF

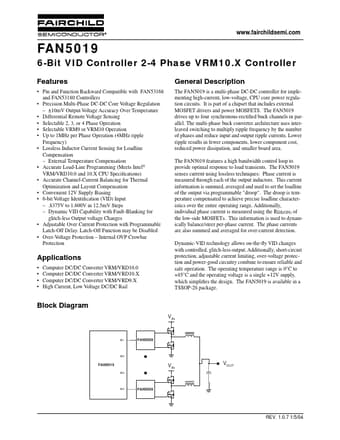

datasheet Preview Page 2 datasheet Preview Page 3
