FAN6550 - 2A DDR Bus Termination Regulator

Fairchild Semiconductor

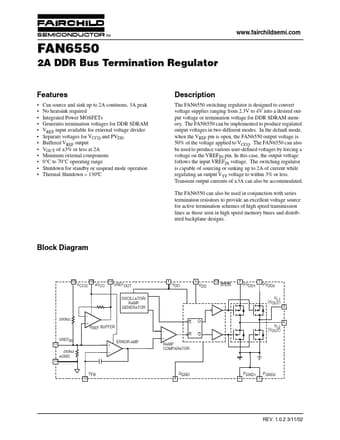

FAN6550 Datasheet Preview — Preview of FAN6550 PDF

Datasheet Details

Part number	FAN6550
Manufacturer	Fairchild ↗ Semiconductor
File Size	99.89 KB
Description	2A DDR Bus Termination Regulator
Datasheet	FAN6550_FairchildSemiconductor.pdf

FAN6550 Product details

Description

The FAN6550 switching regulator is designed to convert voltage supplies ranging from 2.3V to 4V into a desired output voltage or termination voltage for DDR SDRAM memory.

Features

Can source and sink up to 2A continous, 3A peak No heatsink required Integrated Power MOSFETs Generates termination voltages for DDR SDRAM VREF input available for external voltage divider Separate voltages for VCCQ and PVDD Buffered VREF output VOUT of ±3% or less at 2A Minimum external components 0°C to 70°C operating range Shutdown for standby or suspend mode operation Therm.
