FAN65004C - PWM Buck Regulator

📥 Download Datasheet

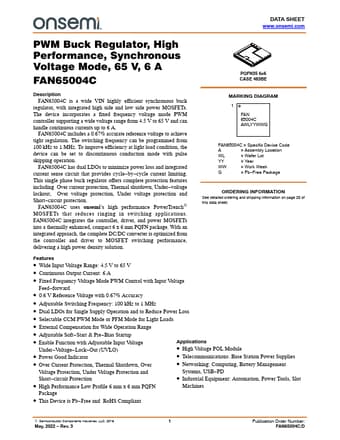

Preview of FAN65004C PDF
datasheet Preview Page 2 datasheet Preview Page 3

FAN65004C Product details

Description

FAN65004C is a wide VIN highly efficient synchronous buck regulator, with integrated high side and low side power MOSFETs.The device incorporates a fixed frequency voltage mode PWM controller supporting a wide voltage range from 4.5 V to 65 V and can handle continuous currents up to 6 A.FAN65004C includes a 0.67% accurate reference voltage to achieve tight regulation.The switching frequency can be programmed from 100 kHz to 1 MHz.To improve efficiency at light load condition, the device can

Features
