FAN6555 - 2A DDR Bus Termination Regulator

Fairchild Semiconductor

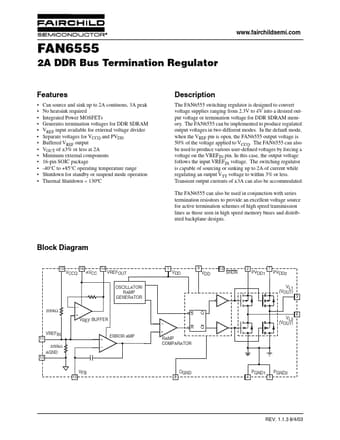

FAN6555 Datasheet Preview — Preview of FAN6555 PDF

Datasheet Details

Part number	FAN6555
Manufacturer	Fairchild ↗ Semiconductor
File Size	116.40 KB
Description	2A DDR Bus Termination Regulator
Datasheet	FAN6555_FairchildSemiconductor.pdf

FAN6555 Product details

Description

The FAN6555 switching regulator is designed to convert voltage supplies ranging from 2.3V to 4V into a desired output voltage or termination voltage for DDR SDRAM memory.

Features

Can source and sink up to 2A continous, 3A peak No heatsink required Integrated Power MOSFETs Generates termination voltages for DDR SDRAM VREF input available for external voltage divider Separate voltages for VCCQ and PVDD Buffered VREF output VOUT of ±3% or less at 2A Minimum external components 16-pin SOIC package -40°C to +85°C operating temperature range Shutdow.
