FAN7300

LCD Back Light Inverter Drive IC

FAN7300 Features

* High Efficiency Single Stage Power Conversion Wide Input Voltage Range 6V to 25V Back Light Lamp Ballast and Soft Dimming Few External Components Precision Volt

FAN7300 General Description

The FAN7300 provides all the control functions for a series parallel resonant converter and also contains a pulse width modulation (PWM) controller to develop a supply voltage. Typical operating frequency range is between 30kHz and 100kHz depending on the CCFL and the transformer's characteristics. .

FAN7300 Datasheet (672.29 KB)

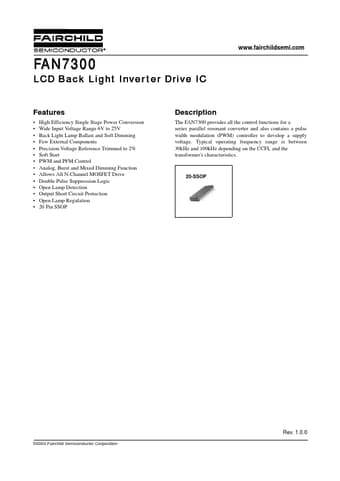

Preview of FAN7300 PDF

Datasheet Details

Part number:

FAN7300

Manufacturer:

Fairchild Semiconductor

File Size:

672.29 KB

Description:

Lcd back light inverter drive ic.
