FAN7311BM, FAN7311B - LCD Backlight Inverter Driver

FAN7311BM Description

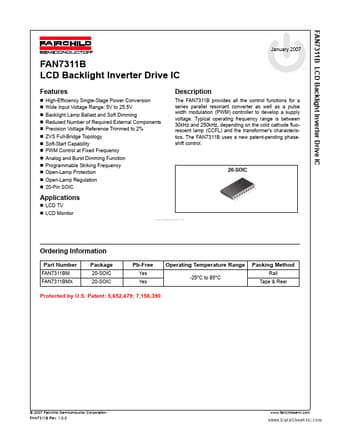

FAN7311B LCD Backlight Inverter Drive IC FAN7311B LCD Backlight Inverter Drive IC January 2007 .
The FAN7311B provides all the control functions for a series parallel resonant converter as well as a pulse width modulation (PWM) controller to devel.

FAN7311BM Features

* High-Efficiency Single-Stage Power Conversion
* Wide Input Voltage Range: 5V to 25.5V
* Backlight Lamp Ballast and Soft Dimming
* Reduced Number of Required External Components
* Precision Voltage Reference Trimmed to 2%
* ZVS Full-Bridge Topology

FAN7311BM Applications

* LCD TV
* LCD Monitor www. DataSheet4U. com Ordering Information Part Number FAN7311BM FAN7311BMX Package 20-SOIC 20-SOIC Pb-Free Yes Yes Operating Temperature Range -25°C to 85°C Packing Method Rail Tape & Reel Protected by U. S. Patent: 5,652,479; 7,158,390. © 2007 Fairchild
