FAN7311N, FAN7311 Datasheet - Fairchild Semiconductor

FAN7311N, FAN7311, LCD Backlight Inverter Driver

FAN7311 * LCD Backlight Inverter Drive IC December 2007 FAN7311 LCD Backlight Inverter Drive IC .
The FAN7311 provides all the co ntrol fu nctions for a series p arallel resonant co nverter as well as a pu lse width m odulation (PWM) controller t o.

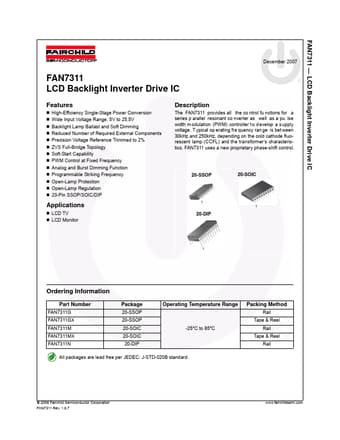

datasheet Preview Page 1 from Datasheet4u.com

FAN7311_FairchildSemiconductor.pdf

FAN7311N Datasheet Preview — This datasheet PDF includes multiple part numbers: FAN7311N, FAN7311. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FAN7311N, FAN7311

Manufacturer:

Fairchild Semiconductor

File Size:

417.71 KB

Description:

LCD Backlight Inverter Driver

Note:

This datasheet PDF includes multiple part numbers: FAN7311N, FAN7311.
Please refer to the document for exact specifications by model.

Features

* High-Efficiency Single-Stage Power Conversion
* Wide Input Voltage Range: 5V to 25.5V
* Backlight Lamp Ballast and Soft Dimming
* Reduced Number of Required External Components
* Precision Voltage Reference Trimmed to 2%
* ZVS Full-Bridge Topology

Applications

* LCD TV
