FAN7310 Datasheet - Fairchild Semiconductor

LCD Back Light Inverter Driver

FAN7310 Features

* High-Efficiency, Single-Stage Power Conversion

* Wide Input Voltage Range: 5V to 24V

* Backlight Lamp Ballast and Soft Dimming

* Reduce External Components

* Precision Voltage Reference Trimmed to 2%

* ZVS full-bridge topology

* Soft-Start Fe

FAN7310 General Description

The FAN7310 provides all the control functions for a series parallel resonant converter and contains a pulse width modulation (PWM) controller to develop a supply voltage. Typical operating frequency range is between 30kHz and 250kHz, depending on the CCFL and the transformer's characteristics. The .

FAN7310 Datasheet (87.23 KB)

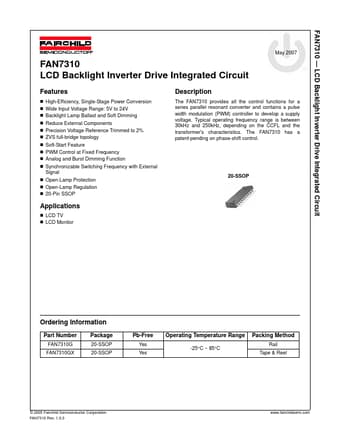

FAN7310 Datasheet Preview — Preview of FAN7310 PDF

Datasheet Details

Part number:

FAN7310

Manufacturer:

Fairchild Semiconductor

File Size:

87.23 KB

Description:

Lcd back light inverter driver.
