FAN7311G, FAN7311 - LCD Backlight Inverter Driver

FAN7311G Description

FAN7311 * LCD Backlight Inverter Drive IC December 2007 FAN7311 LCD Backlight Inverter Drive IC .
The FAN7311 provides all the co ntrol fu nctions for a series p arallel resonant co nverter as well as a pu lse width m odulation (PWM) controller t o.

FAN7311G Features

* High-Efficiency Single-Stage Power Conversion
* Wide Input Voltage Range: 5V to 25.5V
* Backlight Lamp Ballast and Soft Dimming
* Reduced Number of Required External Components
* Precision Voltage Reference Trimmed to 2%
* ZVS Full-Bridge Topology

FAN7311G Applications

* LCD TV

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FAN7311G, FAN7311. Please refer to the document for exact specifications by model.

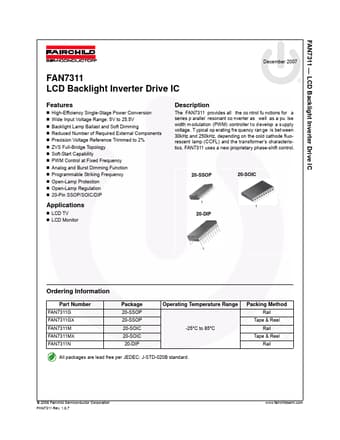

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FAN7311G, FAN7311
Manufacturer
Fairchild Semiconductor
File Size
417.71 KB
Datasheet
FAN7311_FairchildSemiconductor.pdf
Description
LCD Backlight Inverter Driver
Note
This datasheet PDF includes multiple part numbers: FAN7311G, FAN7311.
Please refer to the document for exact specifications by model.
