FAN7380, Half-Bridge Gate Driver

FAN7380 * Half-Bridge Gate Driver September 2015 FAN7380 Half-Bridge Gate Driver .

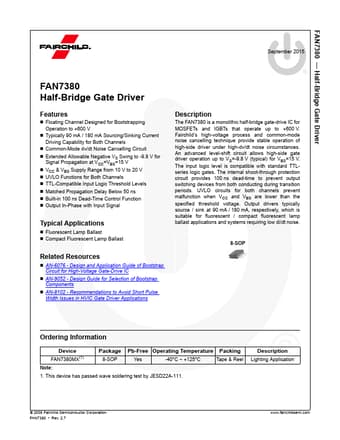

datasheet Preview Page 1 from Datasheet4u.com

FAN7380_FairchildSemiconductor.pdf

FAN7380 Datasheet Preview — Preview of FAN7380 PDF

Datasheet Details

Part number:

FAN7380

Manufacturer:

Fairchild Semiconductor

File Size:

359.35 KB

Description:

Half-Bridge Gate Driver

Features

* Floating Channel Designed for Bootstrapping Operation to +600 V
* Typically 90 mA / 180 mA Sourcing/Sinking Current Driving Capability for Both Channels
* Common-Mode dv/dt Noise Cancelling Circuit
* Extended Allowable Negative VS Swing to -9.8 V for Signal Propagation at VCC=VBS=1

Applications

* Fluorescent Lamp Ballast
* Compact Fluorescent Lamp Ballast Related Resources
* AN-6076 - Design and Application Guide of Bootstrap Circuit for High-Voltage Gate-Drive IC
* AN-9052 - Design Guide for Selection of Bootstrap Components
* AN-8102 - Recommendations to Avoid Short P
