FAN7382 - Half-Bridge Gate Driver

FAN7382 Description

www.DataSheet4U.com www.fairchildsemi.com FAN7382 Half-Bridge Gate Driver (SOURCING/SINKING : 350mA/650mA) .
The FAN7382 is a monolithic half-bridge gate driver IC for driving MOSFETs and IGBTs, which operate up to +600V.

FAN7382 Features

* Floating Cannel Designed For Bootstrap Operation To +600V.
* Typically 350mA/650mA Sourcing/Sinking Current Driving Capability For Both Channels
* Common-Mode dv/dt Noise Canceling Circuit
* Extended Allowable Negative VS Swing To -9V For Signal Propagation @ VCC=VB

FAN7382 Applications

* such as fluorescent lamp ballast, PDP scan driver, motor control, etc. Typical Applications
* PDP Scan Driver
* Fluorescent Lamp Ballast 1 8SOIC Internal Block Diagram HIGH-SIDE DRIVER LEVEL SHIFTER NOISE CANCELLER 8 7 6 VB HO VS UVLO R R S DRIVER Q HIN 2 500kΩ DELAY PULS

📥 Download Datasheet

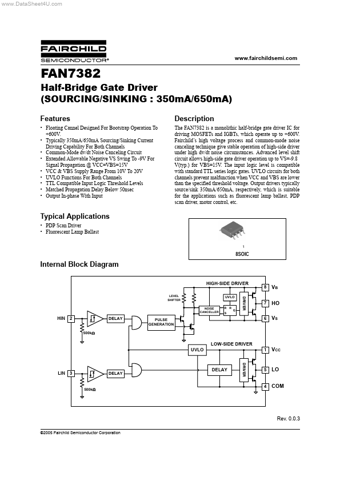

Preview of FAN7382 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FAN7382
Manufacturer
Fairchild Semiconductor
File Size
417.33 KB
Datasheet
FAN7382_FairchildSemiconductor.pdf
Description
Half-Bridge Gate Driver
