FCH041N65F Datasheet - Fairchild Semiconductor

FCH041N65F, MOSFET

FCH041N65F * N-Channel SuperFET® II FRFET® MOSFET December 2014 FCH041N65F N-Channel SuperFET® II FRFET® MOSFET 650 V, 76 A, 41 mΩ .
SuperFET® II MOSFET is Fairchild Semiconductor’s brand-new high voltage super-junction (SJ) MOSFET family that is utilizing charge balance technology.

FCH041N65F-FairchildSemiconductor.pdf

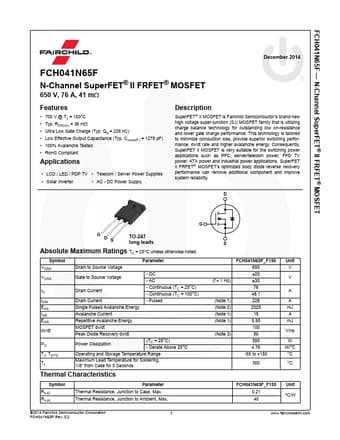

FCH041N65F Datasheet Preview — Preview of FCH041N65F PDF

Datasheet Details

Part number:

FCH041N65F

Manufacturer:

Fairchild Semiconductor

File Size:

1.28 MB

Description:

MOSFET

Features

* 700 V @ TJ = 150°C
* Typ. RDS(on) = 36 mΩ
* Ultra Low Gate Charge (Typ. Qg = 226 nC)
* Low Effective Output Capacitance (Typ. Coss(eff. ) = 1278 pF)
* 100% Avalanche Tested

Applications

* LCD / LED / PDP TV
* Telecom / Server Power Supplies
* Solar Inverter
