FDJ129P Datasheet - Fairchild Semiconductor

FDJ129P P-Channel MOSFET

FDJ129P Features

* 4.2 A,

* 20 V. RDS(ON) = 70 mΩ @ VGS =

* 4.5 V RDS(ON) = 120 mΩ @ VGS =

* 2.5 V

* Low gate charge

* High performance trench technology for extremely low RDS(ON)

* Compact industry standard SC75-6 surface mount package Applications

FDJ129P_FairchildSemiconductor.pdf

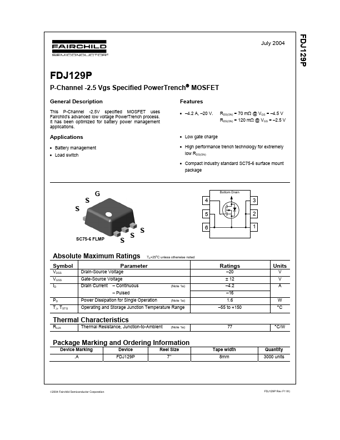

Preview of FDJ129P PDF
FDJ129P Datasheet Preview Page 2 FDJ129P Datasheet Preview Page 3

Datasheet Details

Part number:

FDJ129P

Manufacturer:

Fairchild Semiconductor

File Size:

176.76 KB

Description:

P-channel mosfet.
