FDMC7200S

Dual N-Channel PowerTrench MOSFETs

Fairchild Semiconductor

FDMC7200S Features

* Q1: N-Channel

* Max rDS(on) = 22 mΩ at VGS = 10 V, ID = 6 A

* Max rDS(on) = 34 mΩ at VGS = 4.5 V, ID = 5 A Q2: N-Channel

* Max rDS(on) = 10 mΩ at VGS = 10 V, ID = 8.5 A

* Max rDS(on) = 13.5 mΩ at VGS = 4.5 V, ID = 7.2 A

* RoHS Compliant General Description Th

FDMC7200S General Description

This device includes two specialized N-Channel MOSFETs in a dual power33 (3mm X 3mm MLP) package. The switch node has been internally connected to enable easy placement and routing of synchronous buck converters. The control MOSFET (Q1) and synchronous MOSFET (Q2) have been designed to provide optim.

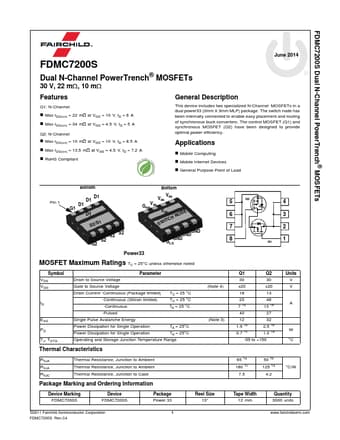

FDMC7200S Datasheet (423.80 KB)

FDMC7200S Datasheet Preview — Preview of FDMC7200S PDF

Datasheet Details

Part number:

FDMC7200S

Manufacturer:

Fairchild Semiconductor

File Size:

423.80 KB

Description:

Dual n-channel powertrench mosfets.
