FDMC7208S, Dual N-Channel PowerTrench MOSFET

FDMC7208S Dual N-Channel PowerTrench® MOSFET July 2013 FDMC7208S Q1: 30 V, 12 A, 9.0 mΩ Q2: 30 V, 16 A, 6.4 mΩ .
This device inclu des two 30V N-Ch annel MOSFETs in a dual Power 33 ( 3 mm X 3 mm MLP) package.

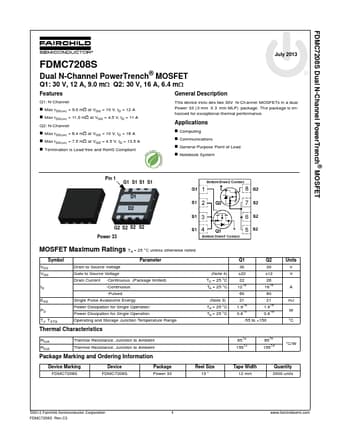

datasheet Preview Page 1 from Datasheet4u.com

FDMC7208S-FairchildSemiconductor.pdf

FDMC7208S Datasheet Preview — Preview of FDMC7208S PDF

Datasheet Details

Part number:

FDMC7208S

Manufacturer:

Fairchild Semiconductor

File Size:

527.14 KB

Description:

Dual N-Channel PowerTrench MOSFET

Features

* Q1: N-Channel
* Max rDS(on) = 9.0 mΩ at VGS = 10 V, ID = 12 A
* Max rDS(on) = 11.0 mΩ at VGS = 4.5 V, ID = 11 A Q2: N-Channel
* Max rDS(on) = 6.4 mΩ at VGS = 10 V, ID = 16 A
* Max rDS(on) = 7.5 mΩ at VGS = 4.5 V, ID = 13.5 A
* Termination is Lead-free and RoHS

Applications

* Computing
* Communications
* General Purpose Point of Load
* Notebook System Pin 1 G1 S1 S1 S1 D1 D2 G2 S2 S2 S2 Power 33 MOSFET Maximum Ratings TA = 25 °C unless otherwise noted Symbol VDS VGS ID EAS PD TJ, TSTG Parameter Drain to Source Voltage Gate to Source
