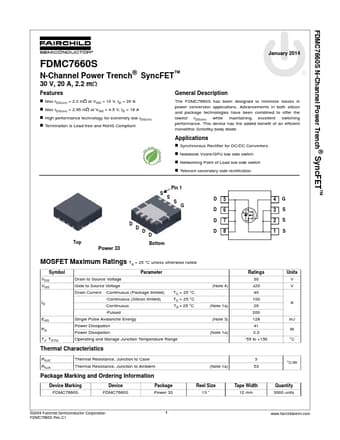

FDMC7660S Datasheet, SyncFET, Fairchild Semiconductor

FDMC7660S Features

• Syncfet
• Max rDS(on) = 2.2 mΩ at VGS = 10 V, ID = 20 A
• Max rDS(on) = 2.95 mΩ at VGS = 4.5 V, ID = 18 A
• High performance technology for extremely low rDS(on)

PDF File Details

Part number:

FDMC7660S

Manufacturer:

Fairchild Semiconductor

File Size:

298.06kb

Download:

📄 Datasheet

Description:

N-channel power trench syncfet. The FDMC7660S has been designed to minimize losses in power conversion applications. Advancements in both silicon and package technol

FDMC7660S Application

• Applications Advancements in both silicon and package technologies have been combined to offer the lowest rDS(on) while maintaining excellent switc
