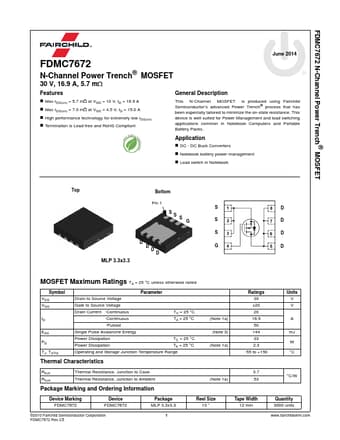

FDMC7672 Datasheet, Mosfet, Fairchild Semiconductor

FDMC7672 Features

• Mosfet General Description
• Max rDS(on) = 5.7 mΩ at VGS = 10 V, ID = 16.9 A
• Max rDS(on) = 7.0 mΩ at VGS = 4.5 V, ID = 15.0 A
• High performance technology for extr

PDF File Details

Part number:

FDMC7672

Manufacturer:

Fairchild Semiconductor

File Size:

326.18kb

Download:

📄 Datasheet

Description:

N-channel power trench mosfet.

Max rDS(on) = 5.7 mΩ at VGS = 10 V, ID = 16.9 A

Max rDS(on) = 7.0 mΩ at VGS = 4.5 V, ID = 15.0 A

High

FDMC7672 Application

• Applications common in Notebook Computers and Portable Battery Packs. Application
• DC - DC Buck Converters
• Notebook battery pow
