FDMC7678 Datasheet, Mosfet, Fairchild Semiconductor

FDMC7678 Features

  • Mosfet
  • Max rDS(on) = 5.3 mΩ at VGS = 10 V, ID = 17.5 A
  • Max rDS(on) = 6.8 mΩ at VGS = 4.5 V, ID = 15.0 A
  • High performance technology for extremely low rDS(on)

PDF File Details

Part number:

FDMC7678

Manufacturer:

Fairchild Semiconductor

File Size:

337.47kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced Power Trench® process that has been especially tailored to

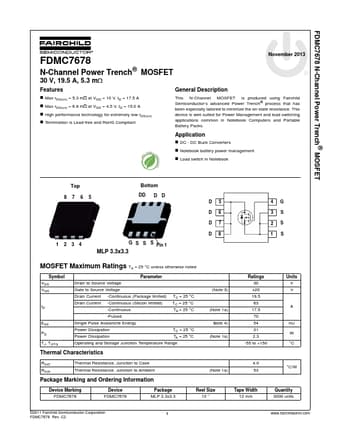

Datasheet Preview: FDMC7678 📥 Download PDF (337.47kb)
Page 2 of FDMC7678 Page 3 of FDMC7678

FDMC7678 Application

  • Applications common in Notebook Computers and Portable Battery Packs. Application
  • DC - DC Buck Converters
  • Notebook battery powe
