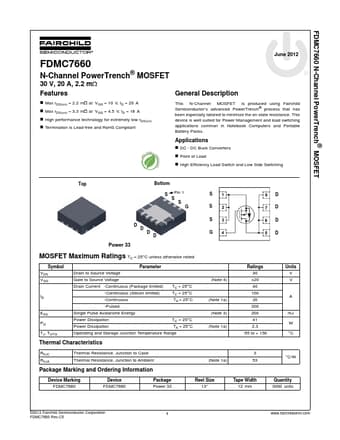

FDMC7660 Datasheet, Mosfet, Fairchild Semiconductor

FDMC7660 Features

• Mosfet General Description
• Max rDS(on) = 2.2 mΩ at VGS = 10 V, ID = 20 A
• Max rDS(on) = 3.3 mΩ at VGS = 4.5 V, ID = 18 A
• High performance technology for extremel

PDF File Details

Part number:

FDMC7660

Manufacturer:

Fairchild Semiconductor

File Size:

270.02kb

Download:

📄 Datasheet

Description:

N-channel powertrench mosfet.

Max rDS(on) = 2.2 mΩ at VGS = 10 V, ID = 20 A

Max rDS(on) = 3.3 mΩ at VGS = 4.5 V, ID = 18 A

High perf

FDMC7660 Application

• Applications common in Notebook Computers and Portable Battery Packs. Applications
• DC - DC Buck Converters
• Point of Load
<
