FDMC7672 Datasheet, Mosfet, ON Semiconductor

FDMC7672 Features

• Mosfet
• Max RDS(on) = 5.7 mW at VGS = 10 V, ID = 16.9 A
• Max RDS(on) = 7.0 mW at VGS = 4.5 V, ID = 15.0 A
• High Performance Technology for Extremely Low RDS(on)

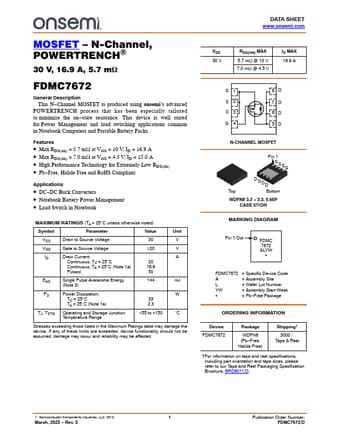

PDF File Details

Part number:

FDMC7672

Manufacturer:

ON Semiconductor ↗

File Size:

300.98kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N

Channel MOSFET is produced using onsemi’s advanced POWERTRENCH process that has been especially tailored to minimize t

FDMC7672 Application

• Applications common in Notebook Computers and Portable Battery Packs. Features
• Max RDS(on) = 5.7 mW at VGS = 10 V, ID = 16.9 A
• M
