FDMF3037

Smart Power Stage (SPS) Module

Fairchild Semiconductor

FDMF3037 Features

* Supports PS4 Mode for IMVP-8

* Ultra-Compact 5 mm x 5 mm PQFN Copper-Clip Package with Flip Chip Low-Side MOSFET

* High Current Handling: 35 A

* 3-State 5 V PWM Input Gate Driver

* Low Shutdown Current: IVCC < 6 µA

* Diode Emulation for Enhanced Light Load Efficiency

FDMF3037 General Description

The SPS family is Fairchild’s next-generation, fully optimized, ultra-compact, integrated MOSFET plus driver power stage solution for .

FDMF3037 Datasheet (742.44 KB)

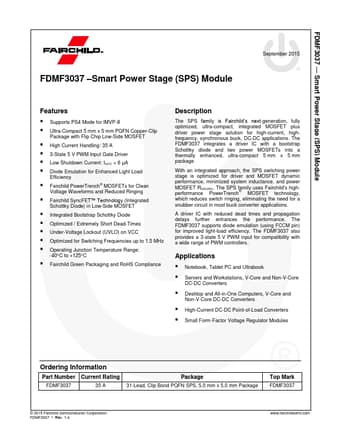

FDMF3037 Datasheet Preview — Preview of FDMF3037 PDF

Datasheet Details

Part number:

FDMF3037

Manufacturer:

Fairchild Semiconductor

File Size:

742.44 KB

Description:

Smart power stage (sps) module.
