FDMF3030 - DrMOS

FDMF3030 Description

FDMF3030 * Extra-Small, High-Performance, High-Frequency DrMOS Module September 2012 FDMF3030 * Extra-Small, High-Performance, High-.
The DrMOS family is Fairchild’s next-generation, fully optimized, ultra-compact, integrated MOSFET-plusdriver, power-stage solution for high-current,.

FDMF3030 Features

* Over 93% Peak-Efficiency High-Current Handling: 50A High-Performance PQFN Copper-Clip Package 3-State 5V PWM Input Driver Automatic Diode Emulation (Skip Mode) Enabled through ZCD_EN# Input Thermal Warning Flag for Over-Temperature Condition Driver Output Disable Function (DISB# Pin) Internal Pull-U

FDMF3030 Applications

* The FDMF3030 integrates a driver IC, two power MOSFETs, and a bootstrap Schottky diode into a thermally enhanced, ultra-compact, 6x6mm package. With an integrated approach, the complete switching power stage is optimized with regard to driver and MOSFET dynamic performance, system inductance, and p

📥 Download Datasheet

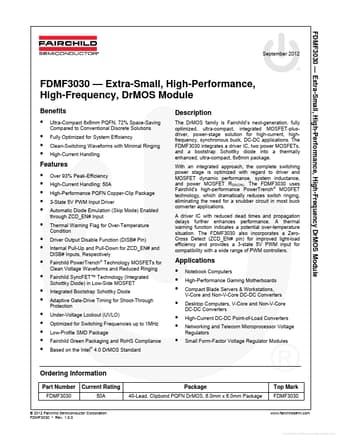

Preview of FDMF3030 PDF
