FDMF5821 - Smart Power Stage (SPS) Module

Product Overview

ON Semiconductor

📥 Download Datasheet

FDMF5821 Smart Power Stage (SPS) Module by ON Semiconductor - Datasheet Preview — Datasheet preview – FDMF5821

Datasheet Details

Part number	FDMF5821
Manufacturer	ON Semiconductor
File Size	1.21 MB
Description	Smart Power Stage (SPS) Module
Datasheet	FDMF5821 Datasheet

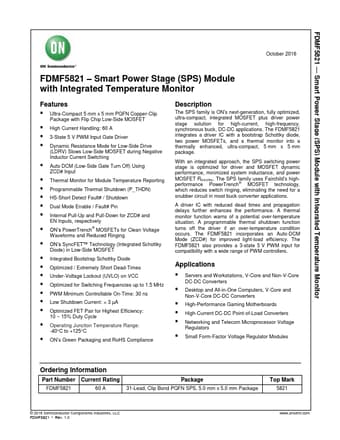

Additional preview pages of the FDMF5821 datasheet.

Product details

Features

Ultra-Compact 5 mm x 5 mm PQFN Copper-Clip Package with Flip Chip Low-Side MOSFET.
High Current Handling: 60 A.
3-State 5 V PWM Input Gate Driver.
Dynamic Resistance Mode for Low-Side Drive (LDRV) Slows Low-Side MOSFET during Negative Inductor Current Switching.
Auto DCM (Low-Side Gate Turn Off) Using ZCD# Input.
Thermal Monitor for Module Temperature Reporting.
Programmable Thermal Shutdown (P_THDN).
HS-Short Detect Fault# / Shutdown.
Dual Mode Enab.
