FDMF5833 - Smart Power Stage (SPS) Module

Product Overview

ON Semiconductor

Datasheet Details

Part number	FDMF5833
Manufacturer	ON Semiconductor
File Size	1.05 MB
Description	Smart Power Stage (SPS) Module
Datasheet	FDMF5833 Datasheet

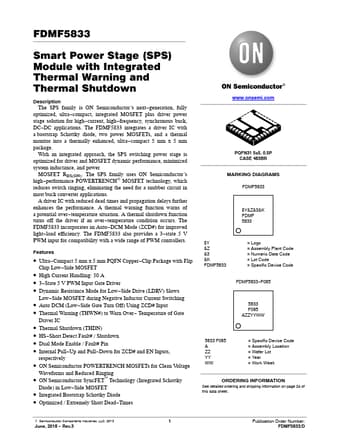

Additional preview pages of the FDMF5833 datasheet.

Product details

Description

The SPS family is ON Semiconductor’s next generation, fully optimized, ultra compact, integrated MOSFET plus driver power stage solution for high current, high frequency, synchronous buck, DC DC applications. compact 5 mm x 5 mm package.

Features

Ultra.
Compact 5 mm x 5 mm PQFN Copper.
Clip Package with Flip Chip Low.
Side MOSFET.
High Current Handling: 50 A.
3.
State 5 V PWM Input Gate Driver.
Dynamic Resistance Mode for Low.
Side Drive (LDRV) Slows Low.
Side MOSFET during Negative Inductor Current Switching.
Auto DCM (Low.
Side Gate Turn Off) Using ZCD# Input.
Thermal Warning (THWN#) to Warn Over.
Temperature of Gate Driver I.
