Part number:
FDS3601
Manufacturer:
Fairchild Semiconductor
File Size:
89.16 KB
Description:
N-channel mosfet.

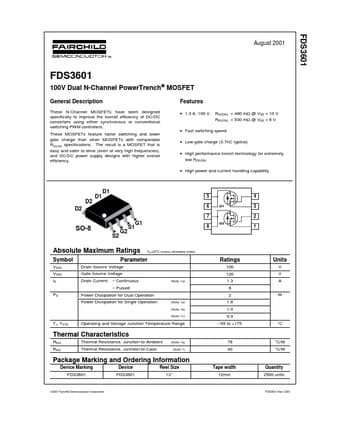

* 1.3 A, 100 V. RDS(ON) = 480 mΩ @ VGS = 10 V RDS(ON) = 530 mΩ @ VGS = 6 V
* Fast switching speed
* Low gate charge (3.7nC typical)
* High performance trench technology for extremely low RDS(ON)
* High power and current handling capability D1 D1 D2 D2 S1 G1 5
FDS3601
Fairchild Semiconductor
89.16 KB
N-channel mosfet.
