FDS3690 Datasheet, Mosfet, Fairchild Semiconductor

FDS3690 Features

  • Mosfet
  • 5 A, 100 V. RDS(ON) = 0.059 Ω @ VGS = 10 V RDS(ON) = 0.066 Ω @ VGS = 6 V
  • Fast switching speed.
  • Low gate charge
  • High performance trench technolog

PDF File Details

Part number:

FDS3690

Manufacturer:

Fairchild Semiconductor

File Size:

208.07kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous o

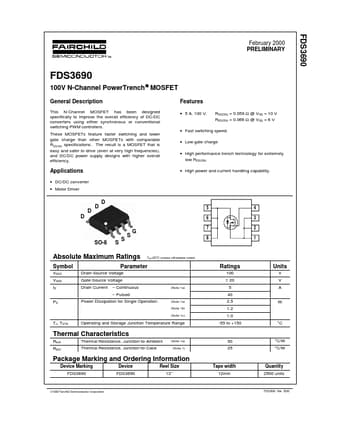

Datasheet Preview: FDS3690 📥 Download PDF (208.07kb)
Page 2 of FDS3690 Page 3 of FDS3690

FDS3690 Application

  • Applications
  • DC/DC converter
  • Motor Driver D D D D 5 6 4 3 2 1 SO-8 S S S G 7 8 Absolute Maximum Ratings Symbol VDSS VG
