FDS3590-NL N-Channel 100V MOSFET

VBsemi

Description

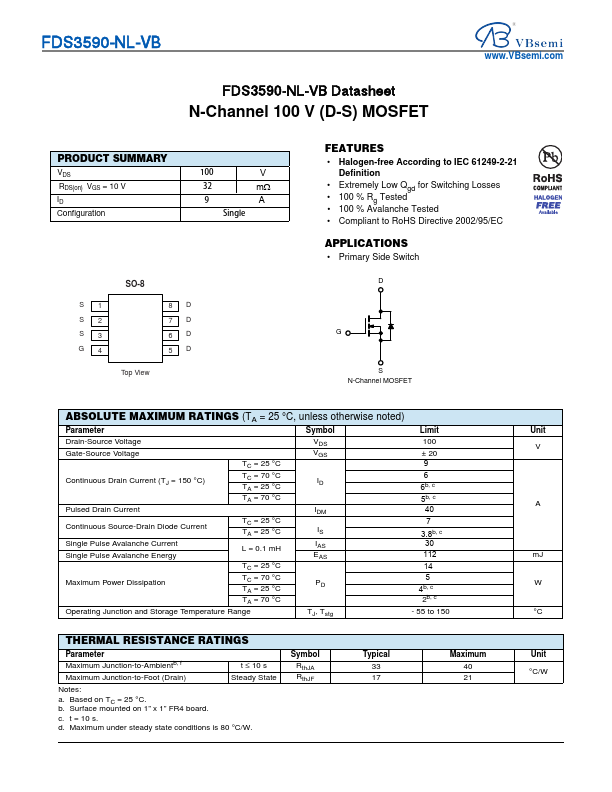

FDS3590-NL-VB FDS3590-NL-VB Datasheet N-Channel 100 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS RDS(on) VGS = 10 V ID Configuration 100 V 3.

📥 Download Datasheet

FDS3590-NL Datasheet Preview — Preview of FDS3590-NL PDF

Datasheet Specifications

Part number: FDS3590-NL
Manufacturer: VBsemi
File Size: 366.31 KB
Datasheet: FDS3590-NL-VBsemi.pdf
Description: N-Channel 100V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Extremely Low Qgd for Switching Losses
* 100 % Rg Tested
* 100 % Avalanche Tested

Applications

* Primary Side Switch D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) TC = 25 °C TC = 70 °C TA = 25 °C TA = 70 °C Pulsed Drain Current Continuous Sou
