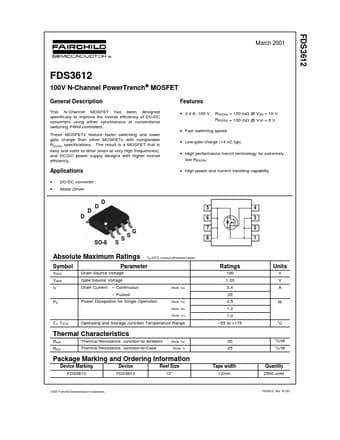

FDS3612 Datasheet, Mosfet, Fairchild Semiconductor

FDS3612 Features

• Mosfet
• 3.4 A, 100 V. RDS(ON) = 120 mΩ @ VGS = 10 V RDS(ON) = 130 mΩ @ VGS = 6 V
• Fast switching speed
• Low gate charge (14 nC typ)
• High performance trench

PDF File Details

Part number:

FDS3612

Manufacturer:

Fairchild Semiconductor

File Size:

91.67kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous o

FDS3612 Application

• Applications
• DC/DC converter Motor Driver D D D D 5 6 4 3 2 1 SO-8 S S S G 7 8 Absolute Maximum Ratings Symbol VDSS VG
