FDS3680 Datasheet, Mosfet, Fairchild Semiconductor

FDS3680 Features

  • Mosfet
  • 5.2 A, 100 V. RDS(ON) = 0.043 Ω @ VGS = 10 V RDS(ON) = 0.048 Ω @ VGS = 6 V.
  • Low gate charge.
  • Fast switching speed
  • High performance trench technol

PDF File Details

Part number:

FDS3680

Manufacturer:

Fairchild Semiconductor

File Size:

202.53kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous o

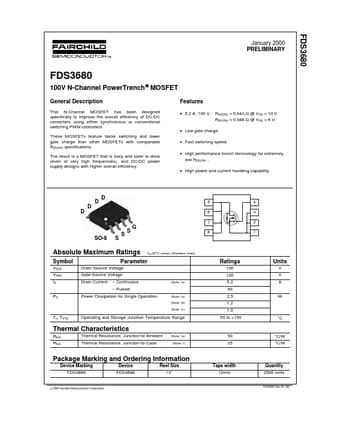

Datasheet Preview: FDS3680 📥 Download PDF (202.53kb)
Page 2 of FDS3680 Page 3 of FDS3680
