FDS4435BZ P-Channel MOSFET

FDS4435BZ Description

FDS4435BZ-NL FDS4435BZ-NL Datasheet www.VBsemi.com P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.018 at VGS = - 10 V .

FDS4435BZ Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET

FDS4435BZ Applications

* Load Switch
* Battery Switch S SO-8 S1 S2 S3 G4 Top View 8D 7D 6D 5D G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS VGS - 30 V ± 20 TC = 25 °C - 9.0 Continuous

📥 Download Datasheet

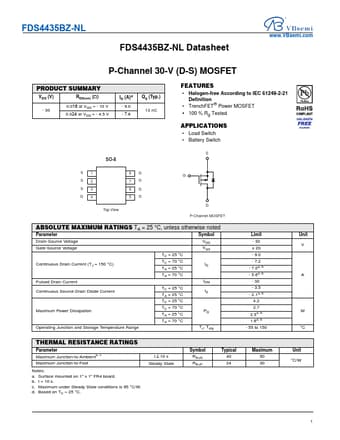

Preview of FDS4435BZ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FDS4435BZ
Manufacturer
VBsemi
File Size
508.33 KB
Datasheet
FDS4435BZ-VBsemi.pdf
Description
P-Channel MOSFET
