FDS4410 - N-Channel MOSFET

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	FDS4410
Manufacturer	Fairchild Semiconductor
File Size	241.99 KB
Description	N-Channel MOSFET
Datasheet	FDS4410 Datasheet

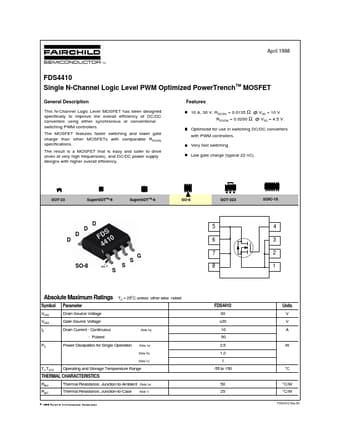

Additional preview pages of the FDS4410 datasheet.

Product details

Description

This N-Channel Logic Level MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

Features

faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency. Features 10 A, 30 V. RDS(ON) = 0.0135 Ω @ VGS = 10 V RDS(ON) = 0.0200 Ω @ VGS = 4.5 V. Optimized for use in switching DC/DC converters with PWM controllers. Very fast switching . Low gate charge (typical 22 nC). SOT-23 SuperSOTTM-6 SuperSOTTM-8.
