FDS4435BZ-F085 - P-Channel Power MOSFET

Datasheet Summary

Description

This P-Channel MOSFET is produced using ON Semiconductor’s advanced PowerTrench® process that has been especially tailored to minimize the on-state resistance.

This device is well suited for Power Management and load switching applications common in Notebook Computers and Portable Battery Packs.

Features

  • Max rDS(on) = 20m: at VGS = -10V, ID = -8.8A.
  • Max rDS(on) = 35m: at VGS = -4.5V, ID = -6.7A.
  • Extended VGSS range (-25V) for battery.

📥 Download Datasheet

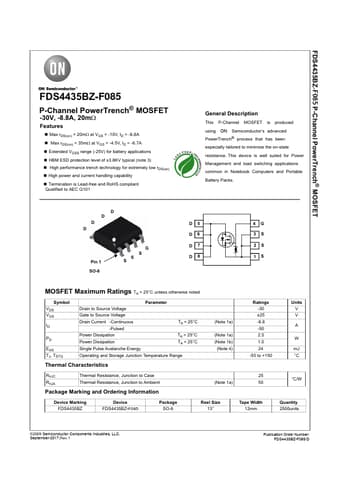

Datasheet preview – FDS4435BZ-F085

Datasheet Details

Part number FDS4435BZ-F085
Manufacturer ON Semiconductor
File Size 352.37 KB
Description P-Channel Power MOSFET
Datasheet download datasheet FDS4435BZ-F085 Datasheet
Additional preview pages of the FDS4435BZ-F085 datasheet.

📁 Similar Datasheet

  • FDS4435BZ - P-Channel PowerTrench MOSFET (Fairchild Semiconductor)
  • FDS4435BZ - P-Channel MOSFET (VBsemi)
  • FDS4435BZ_F085 - P-Channel PowerTrench MOSFET (Fairchild Semiconductor)
  • FDS4435 - P-Channel MOSFET (Fairchild Semiconductor)
  • FDS4435 - -30V P-Channel MOSFET (UMW)
  • FDS4435-NL - P-Channel 30V MOSFET (VBsemi)
  • FDS4435A - P-Channel MOSFET (Fairchild Semiconductor)
  • FDS4435A - P-Channel MOSFET (onsemi)
  • FDS4410 - N-Channel MOSFET (Fairchild Semiconductor)
  • FDS4410A - Single N-Channel MOSFET (Fairchild Semiconductor)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
FDS4435BZ-F085 P-Channel PowerTrench® MOSFET FDS4435BZ-F085 P-Channel PowerTrench® MOSFET -30V, -8.8A, 20m: Features „ Max rDS(on) = 20m: at VGS = -10V, ID = -8.8A „ Max rDS(on) = 35m: at VGS = -4.5V, ID = -6.7A „ Extended VGSS range (-25V) for battery applications „ HBM ESD protection level of ±3.8KV typical (note 3) „ High performance trench technology for extremely low rDS(on) „ High power and current handling capability „ Termination is Lead-free and RoHS compliant Qualified to AEC Q101 General Description This P-Channel MOSFET is produced using ON Semiconductor’s advanced PowerTrench® process that has been especially tailored to minimize the on-state resistance.
