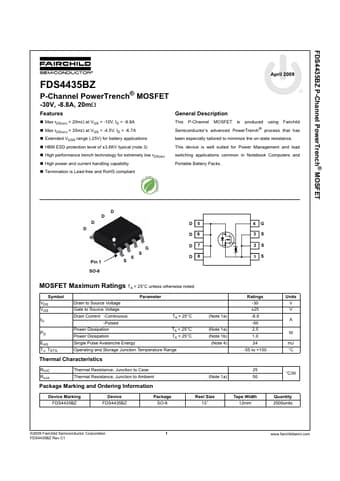

FDS4435BZ Datasheet, Mosfet, Fairchild Semiconductor

FDS4435BZ Features

• Mosfet
• Max rDS(on) = 20m: at VGS = -10V, ID = -8.8A
• Max rDS(on) = 35m: at VGS = -4.5V, ID = -6.7A
• Extended VGSS range (-25V) for battery applications
• HB

PDF File Details

Part number:

FDS4435BZ

Manufacturer:

Fairchild Semiconductor

File Size:

249.64kb

Download:

📄 Datasheet

Description:

P-channel powertrench mosfet. This P-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench® process that has been especially tailored to

FDS4435BZ Application

• Applications
• HBM ESD protection level of ±3.8KV typical (note 3)
• High performance trench technology for extremely low rDS(on)
